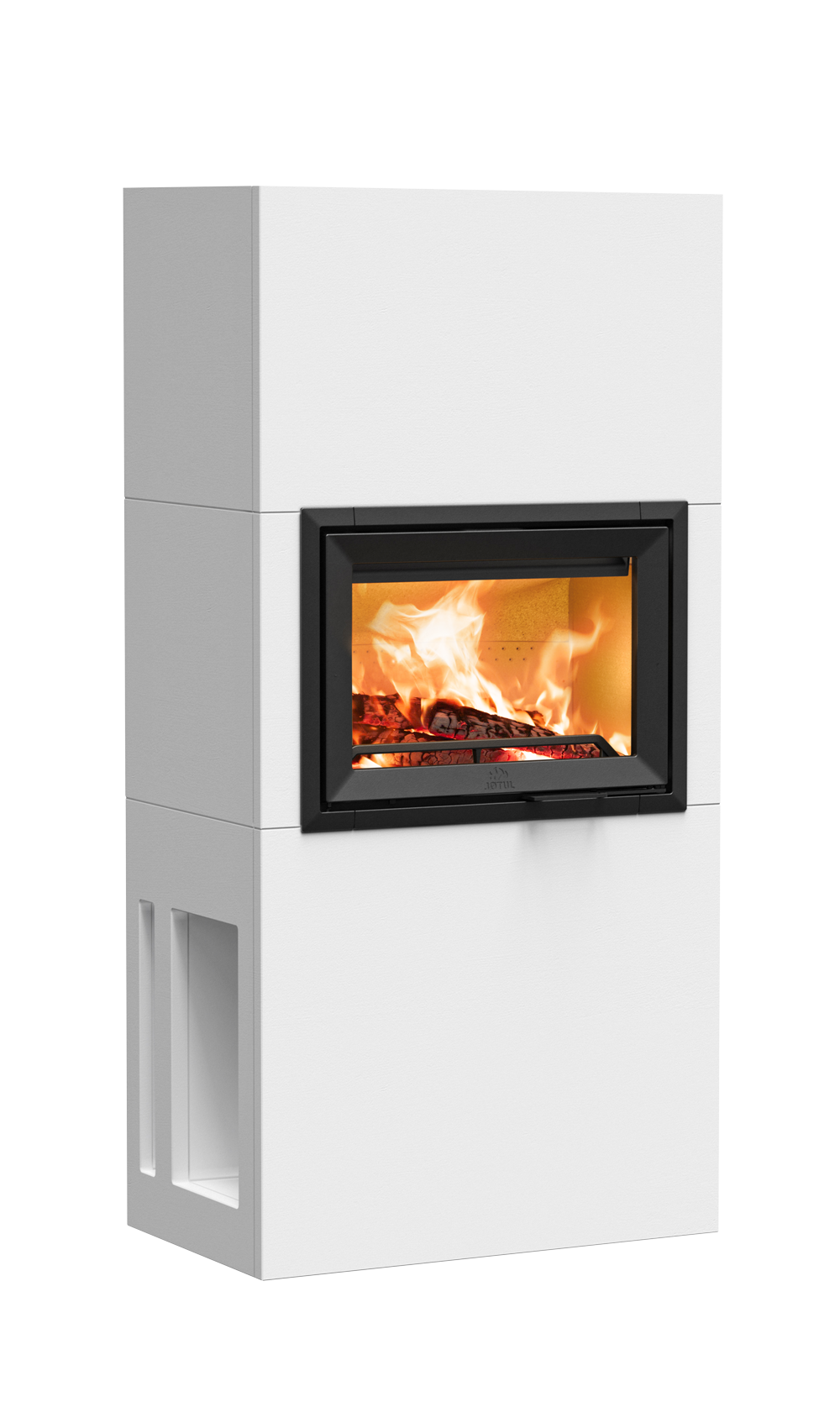

JØTUL FS 520 F

Enjoy the flames and hear the crackle from the fireplace

Description

Jøtul FS 520 F is adapted to the Jøtul I 520 cast iron insert and has glass in the front. The product is adapted to ventilated and standard pipe.

Quick installation
Fireplace insert in durable cast iron
Give the fireplace a color and surface that suits your interior

Size

Height: 1,685 mm

Width: 800 mm

Depth: 540 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 1685 mm
Width 800 mm
Depth 540 mm
Weight 229 kg
Log size up to 50 cm
Flue outlet Ø 150 mm
Flue exit options Top / Rear

Nom output 7.0 kW
Efficiency 77 %
CO Emission 0.07 %
Dust Product Emission 14 mg/Nm³
NOx Emission 54 mg/Nm³
OGC Emission 60 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation manual (31.76 MB)

Statement terms (1.84 MB)

Exploded view and spareparts (575.11 KB)

Door lock - right hinged (1007.64 KB)

Declaration of Performance (1.02 MB)

Declaration of Conformity (3.4 MB)

Data sheet (1.91 MB)

Ecolabel datasheet (177.9 KB)

Ecolabel (874.67 KB)
