Wood

JØTUL F 500 ECO

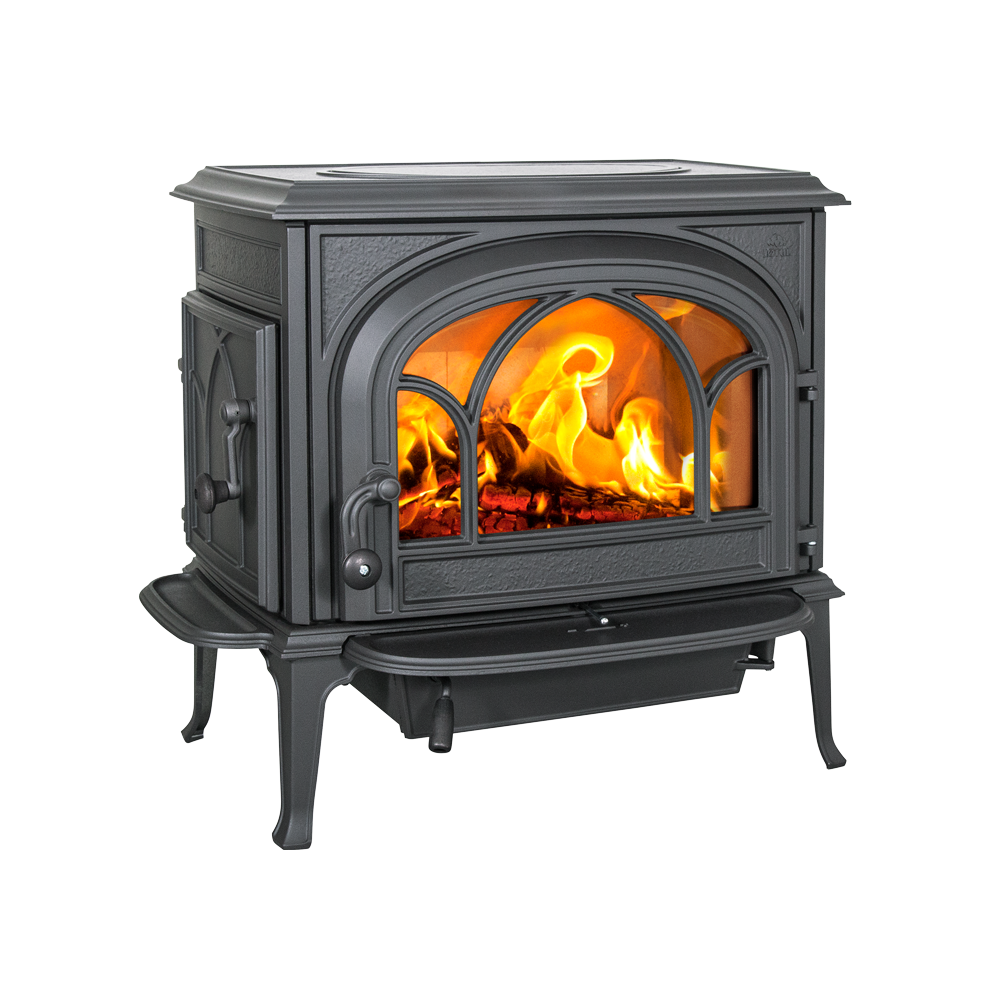

Large classic cast iron wood stove

Description

This is a large wood stove in a classic design, with one of the largest styled doors available, which gives a fantastic view of the flames. Side and front door loading options allow for the wood stove to be positioned in a variety of settings.

Clean burn with air wash system that keeps the glass clean
External air connection kit available
Flue outlet on top and rear

Size

Height: 732 mm

Width: 793 mm

Depth: 713 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 732 mm
Width 793 mm
Depth 713 mm
Weight 200 kg
Log size up to 55 cm
Flue outlet Ø 150 mm
Flue exit options Top / Rear

Nom output 8.8 kW
Efficiency 82 %
Heating capacity up to 157 m²
Heating capacity cubic up to 350 m³
CO Emission 0.09 %
Dust Product Emission 11 mg/Nm³
NOx Emission 103 mg/Nm³
OGC Emission 51 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Statement terms (901.88 KB)

Exploded view and spareparts (9.96 MB)

Screen barrier installation (238.57 KB)

Soapstone top (952.37 KB)

Declaration of Performance (363.94 KB)

Declaration of Conformity (6.29 MB)

Data sheet (528.38 KB)

Ecolabel datasheet (175.01 KB)

Ecolabel (874.8 KB)

Ecolabel (23.59 KB)
