JØTUL F 520 HIGH TOP

High-top with 12 hours of extra heat

Description

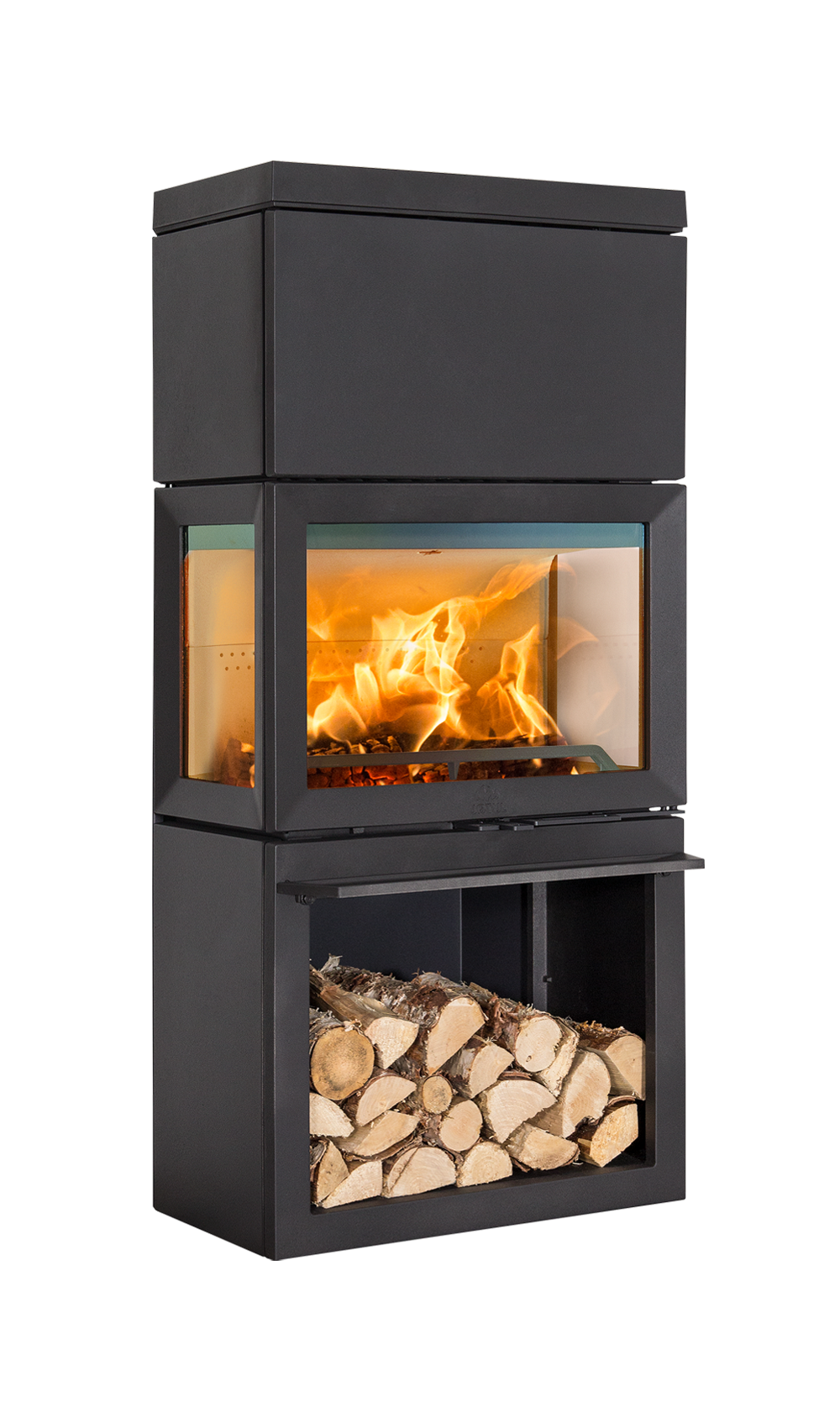

This practical and stylish fireplace provides a wonderful feeling of having a fire in the living room. The large glass surfaces have a special coating that keeps them clean and ensures environmentally friendly combustion. White enamelled burn plates provide a light and airy view to the combustion chamber, even when the stove is not in use. In the base of the stove, there is a convenient space for storing wood. The Jøtul F 520 High Top has room for 60 kg heat-retaining stone, which gives up to 12 hours of extra heat after the last load of wood.

Panoramic view to the fire
Space for heat-retaining stones
Wood storage in the shelf

Size

Height: 1,319 mm

Width: 594 mm

Depth: 532 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 1319 mm
Width 594 mm
Depth 532 mm
Weight 201 kg
Log size up to 50 cm
Flue outlet Ø 150 mm
Flue exit options Top / Rear

Nom output 7.0 kW
Efficiency 77 %
Heating capacity up to 143 m²
Heating capacity cubic up to 350 m³
CO Emission 0.07 %
Dust Product Emission 14 mg/Nm³
NOx Emission 54 mg/Nm³
OGC Emission 60 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (4.89 MB)

Statement terms (310 KB)

Exploded view (2.27 MB)

Spare parts (186.91 KB)

Declaration of Performance (255.02 KB)

Declaration of Conformity (6.59 MB)

Data sheet (756.91 KB)

Ecolabel datasheet (376.44 KB)

Ecolabel (874.66 KB)
